Self locking, with clamping length
compensation Ball lock pins |
GN 113.1 |
| d1 | l1 | d2 | d3 | d4 | l2 | l3 | l4 | l5~ | Location | Clamping | |
| in rest position | in rest | bore | force [N] | ||||||||
| position | D12 | max. | |||||||||
| 6 | 0 | 5 | 7 | 38 | 17,5 | 5 | 5 | 30 | 3 | 6 | 16/18 |
| 8 | 0 | 5 | 9,5 | 38 | 17,5 | 5 | 6,5 | 30 | 3 | 8 | 16/18 |
| 10 | 0 | 5 | 12 | 43 | 23 | 5 | 8,7 | 36 | 4 | 10 | 21/23 |
| 12 | 0 | 5 | 14 | 43 | 23 | 5 | 9,4 | 36 | 4 | 12 | 21/23 |
| Specification | Information | How to order |
| Pin Stainless steel German Standard No. 1.4305 Handle Balls Spring Ring |
Ball lock pins GN 113.1 are used for rapid clamping
and, at the same time, play-free clamping of thin components in particular
where frequent clamping and releasing is required. A typical application
is the alignment and clamping of sheet metal during a welding process.

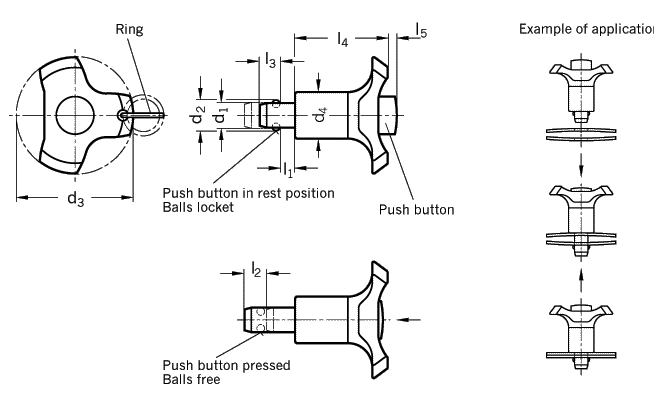

By depressing the spring-loaded push button the pin advances by the length l2 and at the same time frees the two balls. When the push button is released the balls are locked in their forward position and at the same time clamps components together via the clamping force. The ring and the chain are used to prevent loss or misplacement of the ball lock pin. |
Ball lock pin GN 113.1-6-0 Code
No. 113.1 |
|
|
