with friction bearings, for safety handwheels

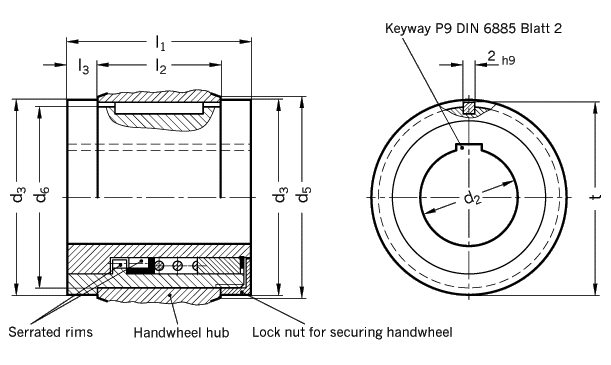

Coupling attachments

GN 000.4


No. d1 d2 H7 d3 d4 d5 d6 l1 l2 l3 t w
    Bore with   max.   -0,03   0,1     min.
  Hand- keyway (K)
  wheel   see minim. Bore   Length     see
  GN   safety diameter diameter   of hand-     safety
  321   hand- of hand- of hub   wheel     hand-
  322   wheels wheel  d6 H7   hub     wheels
  323     hub

1 125 K 12 - 28 17 29 25 28,5 18 5 26 4
  140

2 140 K 14 K 16 32 21 33 29 32,5 20 6 30 4
  160

3 200 K 18 K 20 38 26 39 35 36,5 24 6 36 4

4 250 K 22 - 45 30 46 41 47,5 28 12 42 4
Specification Information How to order
Steel

Serrations nitrided

Bearing surface
TEFLON-coated

KeywayDIN 6885/2

Die Teflon-coated surfaces provide minimal friction between bearing surfaces even when lubrication is being neglected. An oil-hole is provided which in the completely assembled safety handwheel connects with the wheel hub.

Further information for safety handwheelssee

Coupling attachment
GN 000.4-2-K14

Code No. 000.4
No. 2
Keyway K
d2 14
