Shaft clamping units "trueround" |
GN 928 |
| d1 h11 | d2 | d3 | d4 H7 | d5 | e +0,2 | l1 | l2 | l3 | A / F | Mounting |
| Round | max. | tool | ||||||||
| workpiece | ||||||||||
| 8 | M 4 | 6 � 10 | 8 | M 2,5 | d3/2 + 2,8 | 22 | 8 | 4 | 3 | GN 928.1-3 |
| 10 | M 5 | 10 � 15 | 10 | M 3 | d3/2 + 3,3 | 30 | 10 | 5 | 4 | GN 928.1-4 |
| 12 | M 6 | 15 � 20 | 12 | M 4 | d3/2 + 3,5 | 36 | 12 | 6 | 5 | GN 928.1-5 |
| 16 | M 8 | 20 � 30 | 16 | M 5 | d3/2 + 4 | 48 | 16 | 8 | 6 | GN 928.1-6 |
| 20 | M 10 | 30 � 40 | 20 | M 6 | d3/2 + 4,8 | 60 | 20 | 10 | 8 | GN 928.1-8 |
| 25 | M 12 | 40 � 60 | 25 | M 8 | d3/2 + 5,6 | 72 | 25 | 12 | 10 | GN 928.1-10 |
| 30 | M 16 | 60 � 125 | 30 | M 10 | d3/2 + 7,9 | 85 | 30 | 16 | 14 | GN 928.1-14 |
| Specification | Information | How to order |
| Steel blackened Cap screw DIN 912 |

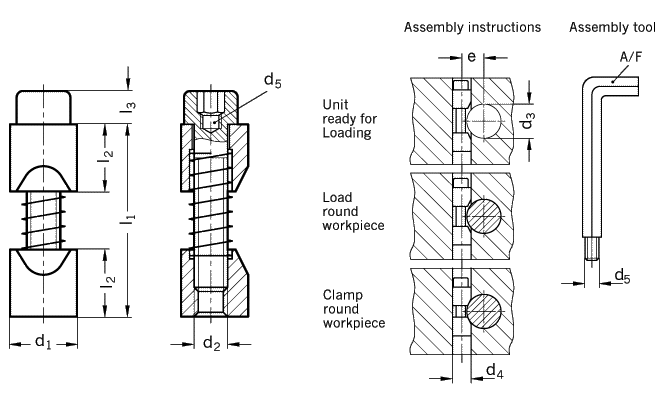

With the shaft clamping units GN 928, round
workpieces from 6 to 125 mm can be rapidly, accurately and economically
clamped.
The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation. For use of the clamping unit on large holders and away from the outside edge, spacers or special bolts are available. |
Shaft clamping unit 'trueround' GN 928-16 Code
No. 928 |
|
|
