Oil level sight glasses		 GN 743
GN 743.1

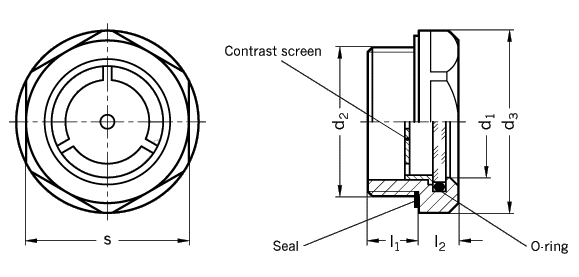

Type A with contrast screen Type B without contrast screen
d1 d2 d3 l1 l2 s

11 G 3/8 M 16 x 1,5   - 22 8 7,5 20
14 G  M 20 x 1,5   - 26 8,5 7,5 23
18 G  M 26 x 1,5 M 27 x 1,5 32 9 8 30

24 G 1 M 33 x 1,5   - 40 11 8,5 36
32 G 11/4 M 40 x 1,5 M 42 x 1,5 50 12 9 46
Specification Information How to order
Aluminum

matt shot-blasted

Contrast screen
Technopolymer (ULTRASON)
(not resistant to
Per-/Trichlorethylene)

GN 743
Temperature resistant
up to 100 °C
Sight glassnatural glass
Seal synthetic rubber
NBR (PERBUNAN)

GN 743.1
Temperature resistant
up to 180 °C
Sight glass specially treated<br
