for angled ball joints DIN 71802 Dust caps |
GN 710 |

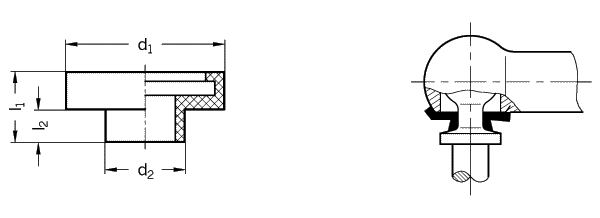

| d1 | d2 | l1 | l2 | for Angled | |
| ball joints | |||||
| DIN 71802 | |||||
| Size (d1) | |||||
| 12 | 5,5 | 4,5 | 1,5 | 8 | |
| 13,5 | 7 | 6,5 | 3,5 | 10 | |
| 17,5 | 8,5 | 7,5 | 3,5 | 13 | |
| 22 | 10,5 | 8,5 | 4,5 | 16 | |
| 25,5 | 12,5 | 12,5 | 7 | 19 |
| Specification | Information | How to order |
| Rubber CR (NEOPRENE)
Temperature resistant black |
Dust caps GN 710 prevent the entering of dirt into angled ball joints DIN 71802. They are supplied loosely; angled ball joints with mounted dust cap on request. Angled ball jointsDIN 718021 St. Steel - Angled ball jointsDIN 718021 |
Dust caps for angled ball joints GN 710-17,5
Code No. 710 |
|
|
|
