System handles GN 669

System handles

GN 669

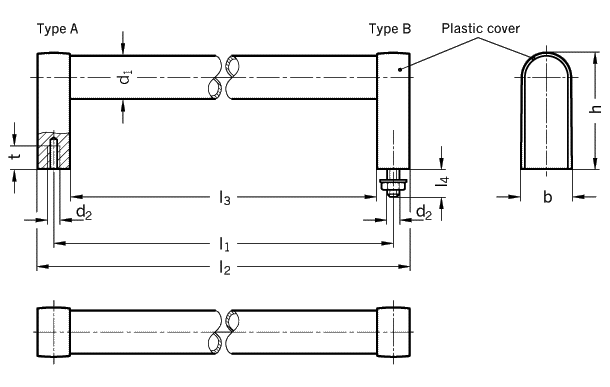

Type A mounting from the back (blind tapped hole)

Type B mounting from the operator's side

d₁	Length l₁	b	d₂	h~	l₂	l₃	l₄	t
								min.

28	200	32	M 8	60	220	180	20	15
28	250	32	M 8	60	270	230	20	15
28	300	32	M 8	60	320	280	20	15

28	400	32	M 8	60	420	380	20	15
28	500	32	M 8	60	520	480	20	15
28	600	32	M 8	60	620	580	20	15

Specification

Information

How to order

Aluminum

Handle tube / end pieces
Plastic coated
matt black (SW)

RAL 9005 textured finish

Handle tube / end pieces
anodized (EL) natural colour

End cover plastic
Technopolymer (Polyamide)
black, matt

Socket head screws
DIN 912-M8x75, steel
zinc plated

Hexagon nuts
ISO 4032, steel
zinc plated

Washers
DIN 125, steel
zinc plated

System handles GN 669 offer the the advantage of high stability when using short handles. Handle and mounting feet are firmly screwed together and the screws are shrouded.

These handles can also be supplied as hand railing. For very long distances between fixing points a special mounting foot with the identical fixing methods and plastic end covers can besupplied. In addition bent tubes (ø28x4) are available.

Handle tube, end pieces as well as plastic end covers in special colour are available on request.

System handle
GN 669-28-400-A-EL

Code No. 669
d₁28
l₁ 400
Type A
Finish EL
