PUSH to disengage Adjustable clamping levers |
GN 6337.3 |
| Type M straight lever | Type N angled lever |
| d1 | d2 | d3 | d4 | d6 | h1 | h2 | h3 | l2 | l3 | t | |
| min. | |||||||||||
| 20 | M 6 | M 8 | 13,5 | 20 | 8,5 | 25 | 8 | 46 | 74 | 70 | 12 |
| 25 | M 8 | M 10 | 16 | 25 | 11 | 29 | 8 | 58 | 93 | 87 | 15 |
| 28 | M 10 | M 12 | 19 | 30 | 13 | 33,5 | 10,5 | 70,5 | 116 | 109 | 18 |
| Specification | Information | How to order |
| Steel Body turned and polished blackened
Ball knob DIN 319 |

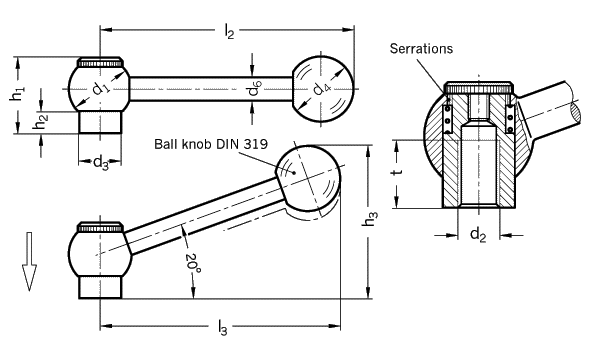

Adjustable clamping levers GN 6337.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The insert is connected with the lever via serrations in the ball bore which can be disengaged. Pushing the lever down, disengages the serrations and the lever can be swivelled to the ideal clamping position. Engagement is achieved by releasing the lever. Should a rotation of 360 degrees not be possible, the insert can be lightly screwed in (after the lever is disengaged) via a slot in the knurled screw. |
Adjustable clamping lever GN 6337.3-28-M12-N
Code No. 6337.3 |
|
|
|
