Ball levers
Extract from
DIN 6337

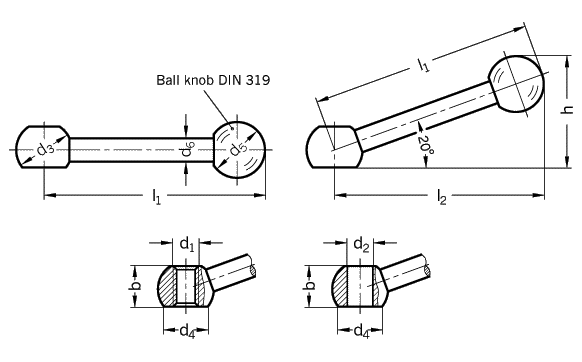

Type K straight lever with plain bore, Tol. H7 Type L angled lever with plain bore, Tol. H7
Type M straight lever with threaded bore Type N angled lever with threaded bore
l1 d1 d2 H7 b d3 d4 d5 d6 h ~ l2 ~
  Thread Bore (B)

63 M 8 B 8 12 16 12,5 20 8 33 60
80 M 10 B 10 14,5 20 16 20 9 40 76
100 M 12 B 12 18,5 25 20 25 11 50 95

125 M 16 B 16 24 32 25 32 15 63 119
160 M 20 B 20 30 40 31 40 18 80 152
Specification Information How to order
Steel

turned and polished

Ball knob DIN 319
Plastic, black

Ball levers DIN 6337 Type A can be suppliedwithout bore and flats i. e. with a solid ball.

DIN 6337 have the same ball diameter d1 and length l1 as clamping levers DIN 99 and ball levers GN 35.

Adjustable clamping leversGN 6337.3

Ball lever
DIN 6337-100-M12-N

Code No. 6337
l1 100
d1 (d2) M12
Type N
