with spherical seating
Hexagon nuts
Extract from
DIN 6330

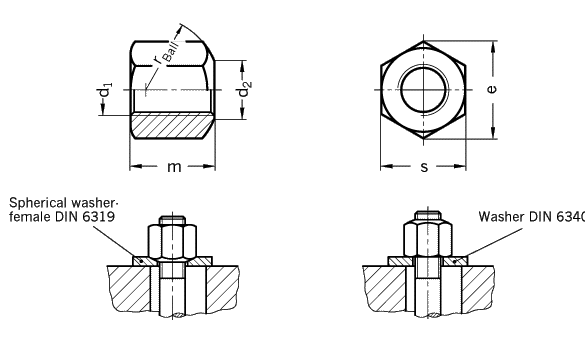

Type B with one-sided spherical seating
d1 d2 H14 m s r

M 8 9 15 12 13 11
M 10 11,5 18 15 16 15
M 12 14 20,5 18 18 17

M 14 16 25,4 21 22 20
M 16 18 27,7 24 24 22
M 20 22 34,6 30 30 27

M 24 26 41,6 36 36 32
M 30 32 53,1 45 46 41
Specification Information How to order
Steel
Tensile strength 1000 N/mm2

blackened

Hexagon nuts DIN 6330 are used on clamping "applications which require frequent clamping and unclamping (m = 1,5 x d1).

The spherical seating together with female washers DIN 6319 allows excessive positional inaccuracies to be equalized.

Female washersDIN 6319

WashersDIN 6340

Hexagon nut
DIN 6330-M16-B

Code No. 6330
d1 M16
Type B
