Thrust pads |
GN 631 |
| d1 | d2 | d3 | e ( | h1 | h2 | Grub screw | Static load [N] |
| GN 632 | (See | ||||||
| information) | |||||||
| 15 | 4,5 | 8,6 | 3,6 | 7,6 | 2,5 | M 6 | 3500 |
| 6,1 | 2,7 | M 8 | |||||
| 18 | 6,1 | 10,8 | 4,3 | 9,2 | 2,5 | M 8 | 3500 |
| 7,8 | 3,2 | M 10 | |||||
| 21 | 7,8 | 12,8 | 3,8 | 10 | 3 | M 10 | 3500 |
| 9,4 | 3,3 | M 12 | |||||
| 25 | 7,8 | 13 | 4,7 | 10,5 | 3 | M 10 | 3500 |
| 9,4 | 3,8 | M 12 |
| Specification | Information | How to order |
| Plastic Technopolymer (DELRIN) black matt finish |

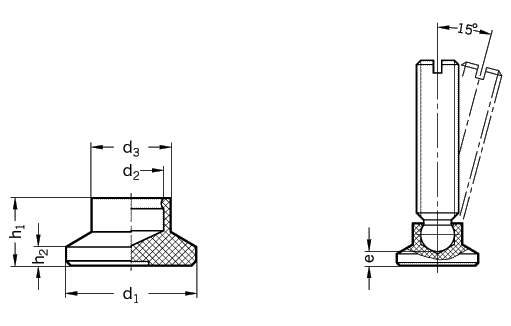

Thrust pads GN 631 with ball point grub screw
GN 632 are ideal to transmit clamping forces.
They lean to uneven and unparallel surfaces. They are easy to press-on to the ball point of the grub screw by hand. Exceeding the static values specified in the above table could lead to failure of the plastic component. The above values have been arrived at by a series of load tests whereby a defined number of thrust pads were subjected to a vertical load over a defined period. Depending on the application and load a safety margin has to be taken into account to ensure that the load is less than the permitted values given in the table. We cannot, however entertain any claims for damage caused by the use of these thrust pads. Through the combination of grub screws GN 632 and thrust pads GN 631 with various handles or knobs simple clamping screws can be created. Levelling feetGN 343.4 |
Thrust pad GN 631-18-6,1 Code
No. 631 |
|
|
