for indexing plungers
Distance bushings

GN 609


d1 H12 d2 -0,1 Length l �0,1 for indexing plungers
    GN 617 GN 607
    GN 617.1 GN 607.1

10 12 2 4 6 8 10 12 Gr. 5

12 14 2 4 6 8     Gr. 6
  17 2 4 5       Gr. 6

16 19 2 4 6 8 10 12 Gr. 8 Gr. 8
Specification Information How to order
Steel

blackened

ISO-fits

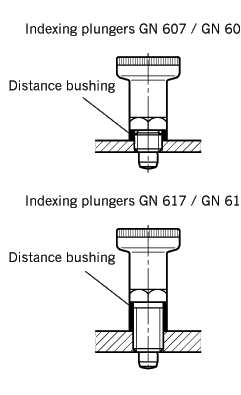

Distance bushings GN 609 compensate for the

body thread lengths on the indexing plungers to "allow mounting through walls of varying thickness.

Distance bushing
GN 609-12-14-8

Code No. 609
d1 12
d2 14
Length l 8
