Retractable safety handles

GN 598.7

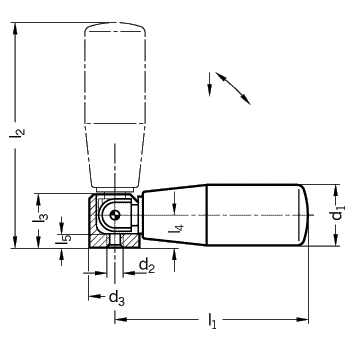

d1 d2 d3 l1 l2 ~ l3 l4 l5

23 M 6 20 77 87 22 13 5,5
26 M 6 20 92 102 22 13 5,5
Specification Information How to order
Handle
Plastic (KU)
Duroplast (Phenolic)

black shiny finish
revolving

Retractable mechanism
Steel
blackened

Retractable handles GN 598.7 are suitable for applications where the handle must not remain in the operating position.

In order to bring the handle into the operating position it has to be turned first through 90 to a stop against a torsion spring and then it is pushed against spring pressure into its hold position. By maintaining the forward thrust on the handle, the handwheel can easily be rotated.

When releasing the handle, the springs return it back to the retracted position.

Retractable safety handle

GN 598.7-KU-23
Code No. 598.7
Material KU
d1 2
