Aluminum Cabinet "U" handles |
GN 565.1 |

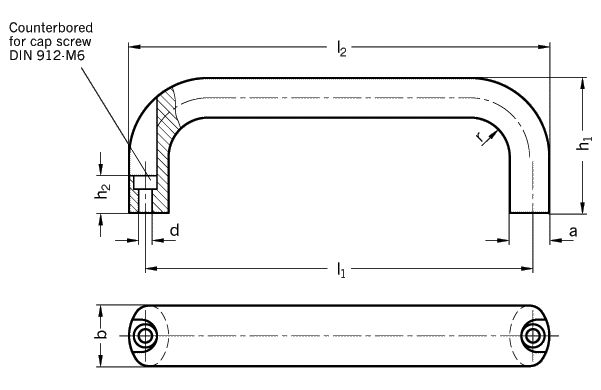

| b | Length l1 | a | d | h1 | h2 | l2 | r |
| 26 | 116 | 17 | 6,3 | 53 | 17 | 130 | 17 |
| 26 | 132 | 17 | 6,3 | 55 | 17 | 146 | 17 |
| 26 | 164 | 17 | 6,3 | 57 | 17 | 178 | 17 |
| 26 | 196 | 17 | 6,3 | 57 | 17 | 210 | 17 |
| Specification | Information | How to order |
| Aluminum
Plastic coated
matt
blank (BL) |
Cabinet "U" handles GN 565.1 are from drawn aluminum, with a smooth surface and of a rigid design. The shape of this handle has good ergonomic features. When coated with epoxy resin its handability is further enhanced. Lengths other than standard are available - "especially extra long versions. |
Cabinet "U" handle GN 565.1-26-132-BL
Code No. 565.1 |
|
|
|
