Cabinet "U" handles

GN 559

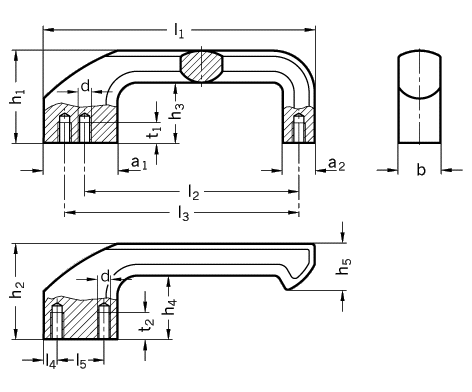

Type A closed type Type B open ended type
l1 a1 a2 b d h1 h2 h3 h4 h5 l2 l3 l4 l5 t1 t2
                            min. min.

162 38 19 25 M 8 55 57 36 38 28 128 140 8 22 12 16
Specification Information How to order
Aluminum

Plastic coated
black (SW)
RAL 9005  textured finish

A special characteristic of the Handle GN 559 is the thumb rest pad on the front of the leg.

At the same time the extended leg offers an open ended version with wide access.

Handles GN 559 are known for their high stability . They are fixed by two M8 screws whereby type A offers two alternative hole centers (l2 or l3).

Cabinet "U" handle
GN 559-162-B-SW

Code No. 559
l1 162
Type B
Finish SW
