Indexing cranked handles

GN 558


Bore Code:
without keyway = B + Bore diameter
with keyway = K + Bore diameter

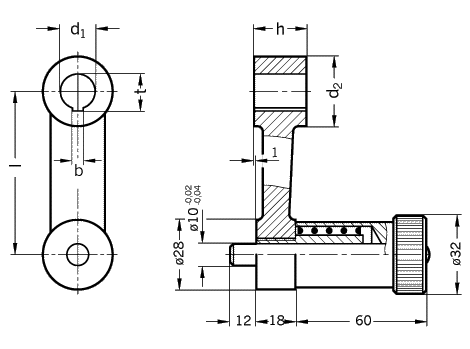

Length l d1 H7 d2 h b P9 t
  Bore

75 16 32 24 5 17,3
90 18 34 26 6 19,7
110 20 36 30 6 21,7

135 22 42 32 6 23,7
165 24 44 36 8 25,7
Specification Information How to order
Body
Cast iron (GGG)

deburred and shot-blasted
Hub faces machined

Handpiece
Steel, blackened

Indexing pin
steel, hardened

KeywayDIN 6885/2

Indexing cranked handles GN 558 are for rotating and positioning mechanisms.

Other indexing elements to revolve and position shafts:

Indexing mechanismsGN 200

Indexing leversGN 215

Adjustable knobGN 700

Indexing cranked handle
GN 558-75-K16

Code No. 558
Length l 75
Bore Code K
d1 16
