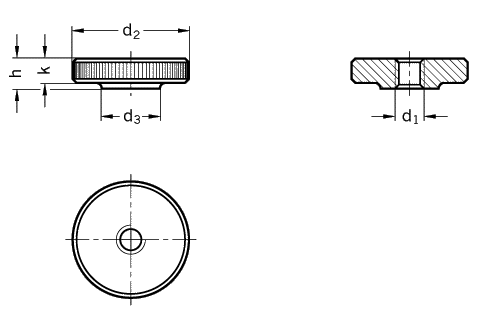

Flat knurled nuts
Extract from
DIN 467


d1 d2 d3 h k

M 3 12 6 3 2,5
M 4 16 8 4 3,5
M 5 20 10 5 4

M 6 24 12 6 5
M 8 30 16 8 6
M 10 36 20 10 8

M 12 40 22 12 10
Specification   How to order
Steel

visible face fine turned

blackened

Flat knurled nut
DIN 467-M8

Code No. 467
d1 M8
