Cabinet "U" handles

GN 427

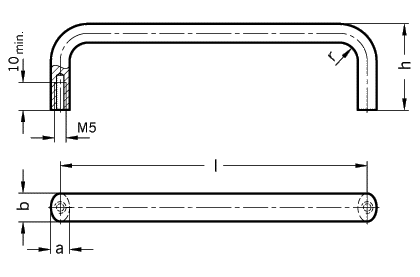

b Length l a h r

12 88 8 40 8
12 100 8 40 8
12 120 8 40 8

12 180 8 40 8
12 200 8 40 8
Specification Information How to order
Aluminum

anodized (EL) natural colour

Cabinet "U" handles GN 427 are made from a profiled aluminum extrusion.

Due to the manufacturing process (bending) special lengths can be produced for relatively small quantity orders.

Cabinet "U" handle
GN 427-12-120-EL

Code No. 427
b 12
Length l 120
Finish EL
