Cabinet "U" handles

GN 425

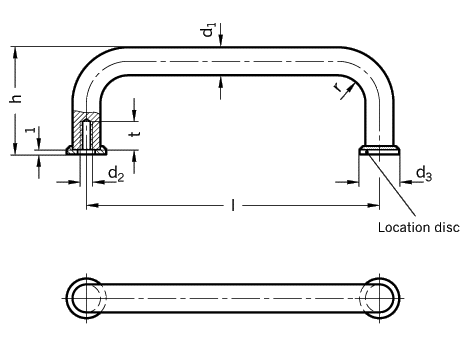

d1 Length l d2 d3 h r t

8 88 M4 12 35 10 8
8 100 M4 12 35 10 8
8 120 M4 12 35 10 8

10 88 M5 15 43 12 12
10 100 M5 15 43 12 12
10 120 M5 15 43 12 12

10 180 M5 15 43 12 12
10 200 M5 15 43 12 12
10 235 M5 15 43 12 12
Specification Information How to order
Steel

Chrome plated (CR)

blackened (BT)

Plastic coated
red (RT) RAL 3000

matt black (SW)
RAL 9005  textured finish

Location disc
zinc plated

Cabinet "U" handles GN 425 are supplied with two zinc plated location discs.

They guarantee a perfect location even with large holes in the cabinet. The discs are loosely enclosed.

Lengths other than standard are available.

Cabinet "U" handle
GN 425-10-120-CR

Code No. 425
d1 10
Length l 120
Finish CR
