Extract from
DIN 39

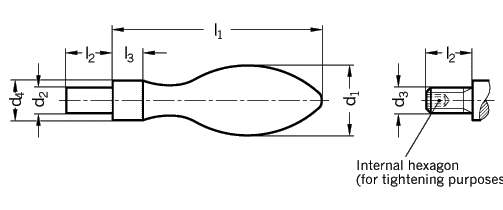

Type D with plain shaft Type E with threaded shaft
d1 d2 h8 d3 d4 h13 l1 l2 l3 Internal
  Type D Type E         hexagon

16 7 M 6 10 50 11 7 3
20 8 M 8 13 64 13 8 4
25 10 M 10 16 80 14 10 5

32 13 M 12 20 100 21 13 6
36 16 M 16 22 112 26 14 8
Specification   How to order
Steel (ST)
all sizes
turned and polished

Plastic (KT)
Technopolymer
only sizes 20, 25, 32
black matt finish
shaft steel

Fixed handle
DIN 39-ST-25-E

Code No. 39
Material ST
d1 25
Type E
