Setting bolts
GN 251

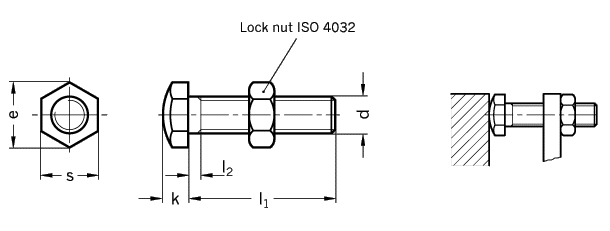

Type A without lock nut Type AK with lock nut
d Length l1 e k l2 max. s

M 6 30 40 50   11,5 4 3 10
M 8 30 40 50   15 5,5 4 13
M 10 40 50 60 70 19,5 7 5 17

M 12 40 50 60 70 22 8 5 19
M 16 50 60 70 80 27,5 10 6 24
Specification Information How to order
Steel
Tensile strength 500 N/mm2

Hexagon head hardened
to HRC 45

blackened

 Setting bolts GN 251 are produced with a hardened and rounded head which can be used as support or setting bolt as an end stop. These bolts are normally used together with a locknut. Setting bolt
GN 251-M12-50-AK

Code No. 251
d M12
l1  50
Type AK
