Door locks |
GN 117 |

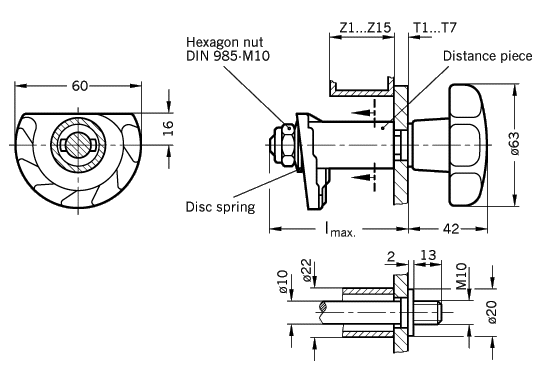

| Type SG operation with hand knob | Type GB with threaded rod |
| Door thickness T 1 ... T 7 | ||||||
| T 1 | T 2 | T 3 | T 4 | T 5 | T 6 | T 7 |
| 1,5 ÷ 3 | 3 ÷ 4,5 | 4,5 ÷ 6 | 6 ÷ 7,5 | 7,5 ÷ 9 | 9 ÷ 10,5 | 10,5 ÷ 12 |
| Door frame thickness Z 1 Z 15 | ||||||||||||||
| Z 1 | Z 2 | Z 3 | Z 4 | Z 5 | Z 6 | Z 7 | Z 8 | Z 9 | Z 10 | Z 11 | Z 12 | Z 13 | Z 14 | Z 15 |
| 09 | 312 | 615 | 918 | 1221 | 1524 | 1827 | 2130 | 2433 | 2736 | 3039 | 3342 | 3645 | 3948 | 4251 |
| Max. bolt length l�max.� for T + Z | |||||||||||
| T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z | T + Z |
| <= 13,5 | <= 18 | <= 22,5 | <= 27 | <= 31,5 | <= 36 | <= 40,5 | <= 45 | <= 49,5 | <= 54 | <= 58,5 | <= 63 |
| 31 | 35,5 | 40 | 44,5 | 49 | 53,5 | 58 | 62,5 | 67 | 71,5 | 76 | 80,5 |
| Specification | Information | How to order |
| Hand knob plastic Technopolymer (Polyamide) DIN 6336 Type K Cam sheet steel Spindle and spacer tube steel
all parts zinc plated and |
Door locks GN 117 are vibration proof and they "have a large pulling-in range of up to 10 mm. "Locking is achieved by turning the knob clockwise. Attention is drawn to its simple and hence cost saving installation. Type GB with threaded rod has been introduced to accept other types of handles besides the hand knob. |
Door lock GN 117-SG-T2-Z5
Code No. 117 |
|
|
|
